SEPTIC CONSERVANCY TANKS

icon

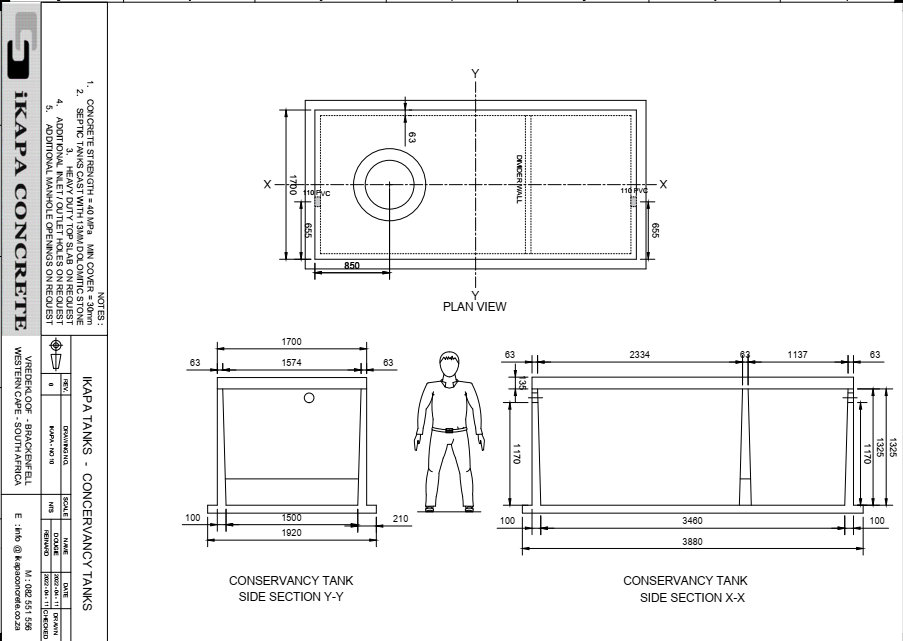

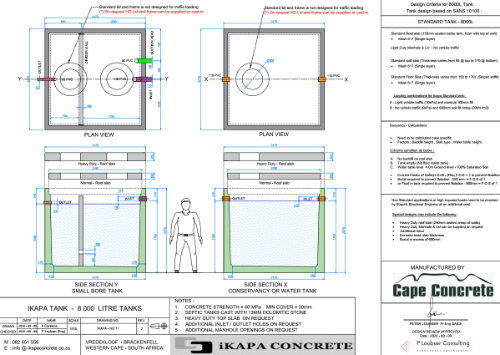

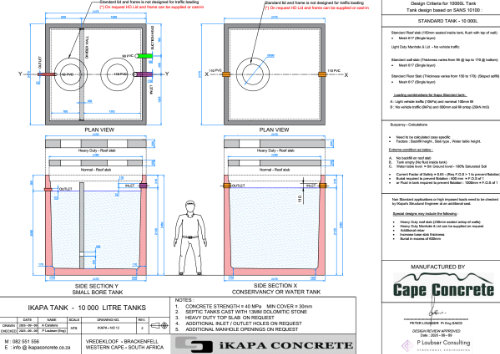

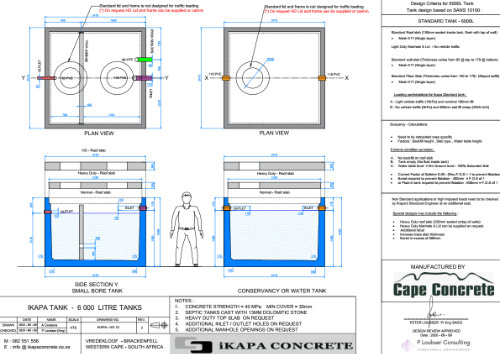

Specification of Septic Conservancy Tanks
The products carries a 1 year structural warrantee against cracking..



Unit
Size
Capacity
Weight
Width
Depth
Height
2,47 m
2,47 m
1,660 m
6 000 L
8 790 Kg
2,47 m
2,47 m
2,040 m
8 000 L
10 200 Kg
2,47 m
2,47 m
2,430 m
10 000 L
11 600 Kg

Wall thickness 175 mm to 135 mm
Bottom 120 mm
Top slab 150 mm
Tanks fitted with 110mm inlet and outlet couplings
Round inspection cover on lid

icon

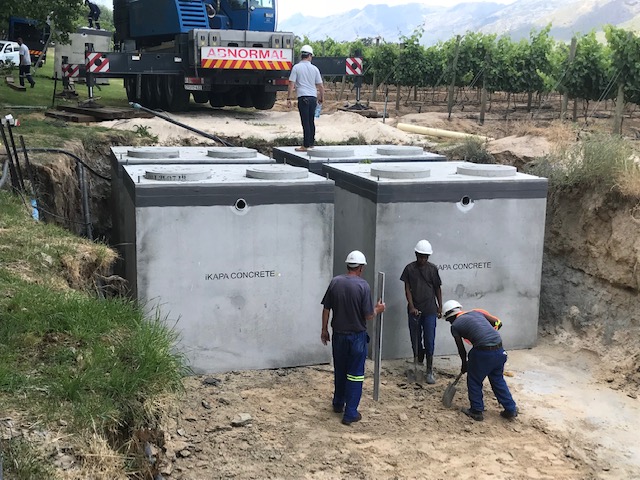

iKapa Concrete Septic Conservancy Tanks

Septic tanks: The client is responsible for the following:

  • Digging of the hole by means of own contractor.
  • Making sure the floor of the hole is as level as possible.
  • There must be adequate space and no obstructions for the truck to reach the hole and lower the tank.
  • Water inside the hole must be removed prior to installation.
  • The filling of the hole with soil immediately after the tank has been lowered.
  • Pipes, plumbing, filters and suction pipe are not part of the tank.

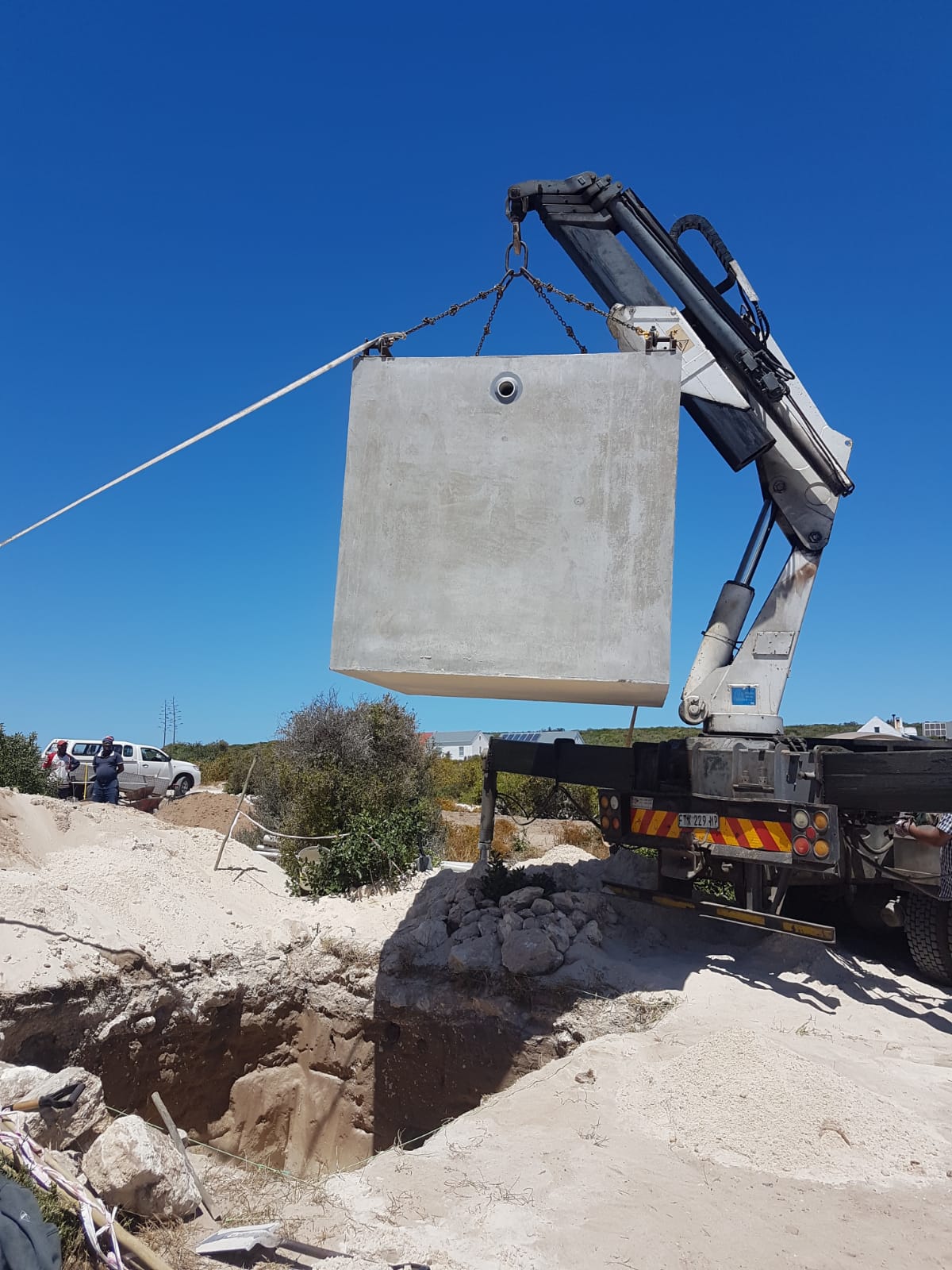

  • Installation would be via a crane truck/mobile crane by an accredited rigging company.
