iKapa Concrete Wine tanks

Our concrete wine tanks are designed to optimise the characteristics that our egg shaped tanks offer. The unique shape encourages flow during fermentation, with the slightly porous surface allowing sufficient oxygen into the tank to enhance the fermentation process. This is similar to the fermentation process in wooden barrels, without the default oak aroma. Our advantage is a vessel of a much longer product life. The fermentation process in our concrete tanks results in a smoother, well rounded flavour.

Manufactured from high quality raw materials, our tanks do not rely on internal coatings to provide these ideal conditions for making quality wine. They are manufactured in the Western Cape, in a factory that is compliant with SANS standards. All our tanks are built in accordance with ISO 9001.

icon
Specification of concrete tanks

  • Ordinary Portland Cement
  • Washed Granite Stone
  • Washed Dune Sand
  • Polypropylene Micro Fibres
  • Chlorine Free Water
  • 40 Mpa Concrete
  • Wall Thickness 80mm - 120mm
  • Stainless Steel Fittings from Italy, grade 304 and 316
  • Stainless Steel Adjusters on all legs (Optional)
  • No chemical additives

Our tanks are manufactured with 40 Mpa fibre reinforced special design concrete made of chlorine free water.

The products carries a 5 year structural warrantee against cracking.


Tank Specifications
Item
Diameter
Length
Capacity
Weight

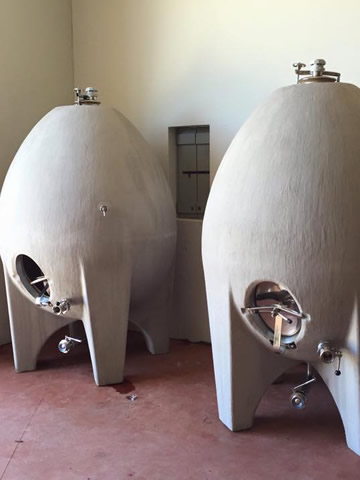

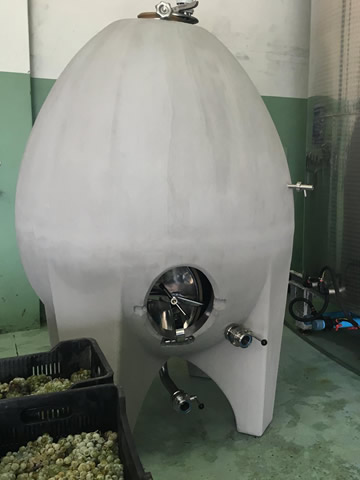

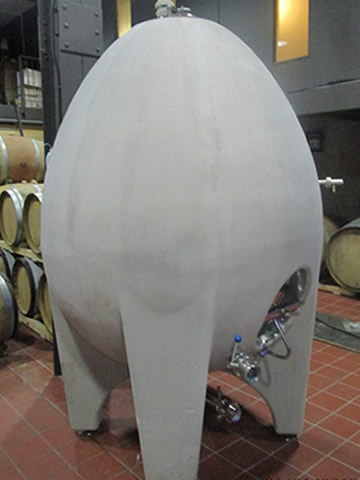

Eon (Egg shaped)
1574mm
2400mm
1520 L
1950 Kg

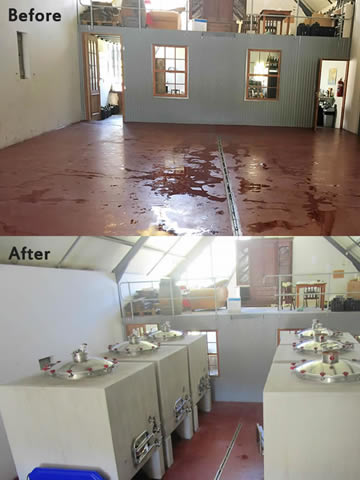

SQUARES
Width
Depth
Height
Blake
1,67m
1,67m
1,540m
2550 L
5720 Kg
Mieke
2,47m
2,47m
1,576m
6000 L
8500 Kg
Keahte
2,47m
2,47m
2.03m
8000 L
10 000 Kg
Kian
2,47m
2,47m
2,400m
10 000 L
11 000 Kg

Wall thickness 175 mm to 135 mm
Bottom 120 mm
Top slab 150 mm
